PACK SOUND™

INNOVATION FOR THE FUTURE
Mass Loaded Vinyl - Packsound
Sound Dampening Sheet | Packsound

Sound Dampening Sheet | Mass Loaded Vinyl

In the realm of contemporary soundproofing solutions, PackSound by Ecotone represents a cutting-edge innovation that outshines traditional sound dampening sheets like mass loaded vinyl sheets in providing superior noise control. Unlike conventional materials that focus solely on sound dampening or sound blocking, PackSound embodies a hybrid approach, combining the best attributes of sound dampening sheet and mass loaded vinyl sheet. Its advanced composition, often incorporating dense rubber, specialized foams, and other proprietary materials, not only effectively dampens and absorbs sound waves but also significantly diminishes noise transmission. PackSound sheets offer an unparalleled ability to manage various frequencies of sound, making them highly efficient in controlling and reducing noise levels across a wide spectrum other then mass loaded vinyl sheets. This unique amalgamation of sound absorption and blocking capabilities places PackSound by Ecotone at the forefront of modern soundproofing technologies, making it an ideal choice for those seeking optimal noise control in diverse settings, whether it’s residential, commercial, or industrial environments.

Packsound – The Noise Challenge refers to a situation where individuals or communities are faced with excessive and disruptive levels of noise. Noise, in this context, refers to unwanted or unpleasant sounds that can be detrimental to people’s health, well-being, and quality of life.

Noise pollution has become a significant concern in many urban areas and even some rural regions. It can originate from various sources such as traffic, construction sites, industrial activities, public events, loud music, and even neighbors. Constant exposure to high noise levels can lead to a range of negative effects, including stress, sleep disturbances, hearing loss, impaired concentration, and decreased productivity.

Noise Chart
NOISE is the set of sounds produced by more or less irregular vibrations, which are often perceived as a nuisance. The smallest variation likely to be perceived by the human ear is of the order of 2 to 3 dB (A).

WHY PACKSOUND IS BETTER THAN MASS LOADED VINYL SHEETS

One of the standout features of Packsound is its exceptional effectiveness in controlling noise. It not only surpasses the performance of traditional sound dampening sheets by absorbing and dampening sound waves but also outperforms MLV sheets in its ability to significantly reduce noise transmission across different frequencies. Packsound’s comprehensive noise control abilities make it highly versatile and ideal for a wide range of applications, both indoors and outdoors.

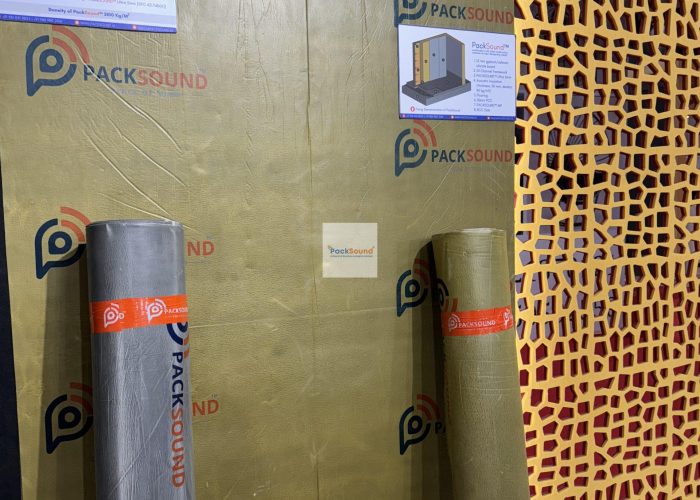

IMG_9477
  • Density: The density of PackSound™ is 2,200 Kg/m3 which offers good sound dampening results

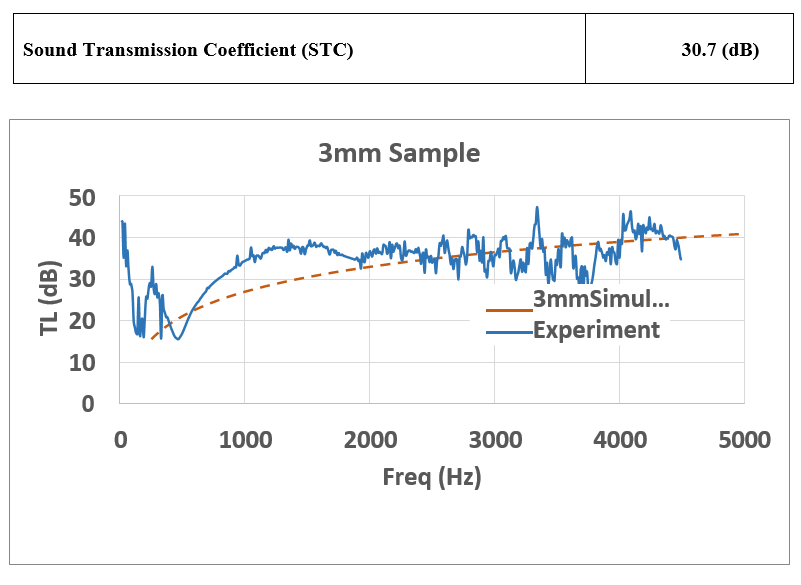

  • STC Value: 42.7
  • Density: 1600 kg/m3
  • STC value: 35

TYPES OF NOISE IN BUILDINGS

Airborne noise refers to sound that travels through the air and is transmitted from one area to another. It can originate from sources such as conversations, music, televisions, or outside traffic. Airborne noise can be particularly bothersome in shared spaces or between adjacent rooms or apartments.

Impact noise, on the other hand, is caused by the direct impact of an object on a surface, resulting in vibrations that transmit sound. Examples of impact noise include footsteps, moving furniture, or objects being dropped on the floor. Impact noise can be particularly disruptive in multi-story buildings or spaces with thin flooring materials.

Equipment noise refers to the sounds generated by various mechanical or electrical devices within a building. This can include HVAC systems, generators, pumps, or appliances. Equipment noise can be intrusive and contribute to an overall noisy environment, affecting comfort and productivity.

THE ALL IN ONE SOLUTION FOR THE NOISE PROBLEM

PACKSOUND™

PACKSOUND™ is a high-density, highly flexible synthetic soundproofing membrane that provides excellent sound attenuation in conventional constructions without compromising thickness. It is highly flexible and easily stretchable, which means it can be molded to fit any shape or surface and easily handle intricate joints and corners. PACKSOUND™ stands out for its fire resistance and meets the “O” fire rating. This means it does not spread flames, is self-extinguishing, does not drip, and does not emit molten particles. Available in different weights, in specific sizes for plasterboard, or in combination with absorbent felt,  PACKSOUND™ offers solutions for any type of building system and also for industrial
applications.
Packsound | Mass loaded vinyl
Packsound | Mass loaded vinyl
Packsound | Mass loaded vinyl

Features :-

Our PACKSOUND™ Have

45/STC Value
  • Acoustic insulation throughout the frequency range.
  • High performance acoustic insulation combined with pliable components (gypsum, plasterboard, carrier board etc.)
  • Flexible and adaptable to uneven surfaces
  • High elongation capacity
  • Fire rating: B-s2, d0. In other words, it does not contribute to the fire
  • Static service temperature : from -10ºC up to 60ºC.
  • Long life and low cost product.

PACKSOUND™ SHEET SPECIFICATIONS

DENSITY

The density of PackSound™ is 2,200 Kg/m3 which offers good sound dampening results

SHEET SIZE

Area: 5.65 Sqm (60 Sqft)
Weight: 11 Kg/Sqm
Total Weight: 62.15 Kg

5MM

L: 4.83 Meters
B: 1.17 Meters
H: 5mm/3mm/2mm

3MM

Area: 5.65 Sqm (60 Sqft)
Weight: 6.6 Kg/Sqm
Total Weight: 37.29 Kg

2MM

Area: 5.65 Sqm (60 Sqft)
Weight: 4.4 Kg/Sqm
Total Weight: 24.86 Kg

PACKSOUND™ Combination Material For Best Dampening Results

  • 12 mm gypsum/calcium silicate board

  • GI Channel Framework

  • PACKSOUND™ HP

  • Acoustic Insulation (thickness: 50 mm; density: 96kg/m3)

  • Flooring 50mm PCC

  • PACKSOUND™ MP

  • RCC Slab

APPLICATION OF PACKSOUND

WALL

1. Plaster coast

2. Brick wall

3. Packsound[2-5mm]

4. Flooring

PACKSOUND WALL

CEILINGS

1. Support

2. Air cavity (thickness: 200 mm)

3. Suspension brackets

4. Glasswool & Packsound[2-5mm]

5. Metal substructure out of CD profiles

6. Micro-perforated panel

PACKSOUND CEILING

FLOORS

1. Support

2. Packsound[2-5mm]

3. Carpet

PACKSOUND FLOOR

Why Packsound Stands Out

While there exist other soundproofing alternatives in the market, Packsound  distinguishes itself due to several factors:

Innovative Technology:

Packsound employs advanced materials and engineering techniques, resulting in a product that surpasses traditional soundproofing solutions. Its unique composition and construction render it highly effective in noise reduction.

High Performance:

Packsound unparalleled sound absorption capabilities enable superior noise control across a wide frequency range. It outperforms many conventional soundproofing materials, delivering exceptional results.

Durability and Longevity:

Packsound is engineered to be long-lasting and resistant to wear and tear. Its robust construction ensures that it retains its soundproofing qualities over an extended period, providing reliable performance for years to come.

Environmental Friendliness:

Packsound is manufactured using sustainable materials and processes. It is free from harmful substances, making it a safe and eco-friendly choice for soundproofing applications.

Cost Effective:

The Packsound is one of the best cost-effective acoustic materials. Ecotone Acoustics develop it with a vision to make it wrong that acoustic proofing is highly costly.
